32A 40A EV Charger Level 2 Type 1 J1772 Plug NEMA14-50 220V-240V Portable EV Charging Cable

Short Description:

Rated current: 16A / 24A / 32A / 40A
Rate Power: 9.6KW Max
Operating voltage: 110V~240V AC
Insulation resisitance:>1000MΩ
Therminal temperature rise:<50K
Withstand voltage:2000V
Working temperature: -30°C ~+50°C
Contact impedance: 0.5m Max
Portable EV Charger Type 1 J1772 Plug




Product Detail

Product Tags

40A EV Charger Level 2 Type 1 J1772 Plug NEMA14-50 220V-240V Portable EV Charging Cable

40A ev charger box

Rated Current 16A / 24A / 32A /40A adjustable current )
Rated Power Max 9.6KW
Operation Voltage AC 110V~240 V
Rate Frequency  60Hz
Leakage Protection Type B RCD  ( Optional )
Withstand Voltage 2000V
Contact Resistance 0.5mΩ Max
Terminal Temperature Rise <50K
Shell Material ABS and PC Flame Retardant Grade UL94 V-0
Mechanical Life No-Load Plug In  / Pull Out >10000 Times
Operating Temperature -25°C ~ +55°C
Storage Temperature -40°C ~ +80°C
Protection Degree IP67
EV Control Box Size 220mm (L) X 100mm (W) X 55mm (H)
Weight 2.1KG

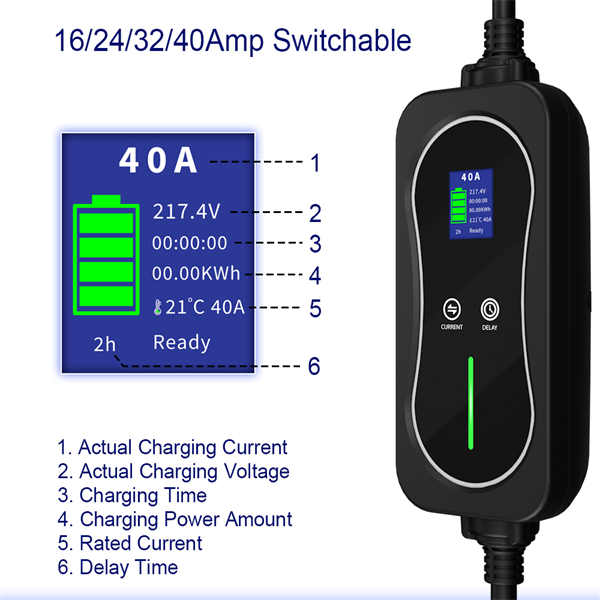

OLED Display Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged, Preset Time
Standard IEC 62752  ,  IEC 61851
Certification TUV,CE Approved
Protection 1.Over and under frequency protection
2. Over Current Protection
3.Leakage Current Protection (restart recover)
4. Over Temperature Protection
5.Overload protection (self-checking recover)
6. Ground Protection and Short circuit protection
7.Over voltage and under-voltage protection
8. Lighting Protection
